Condition:

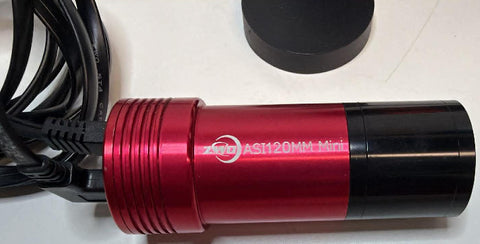

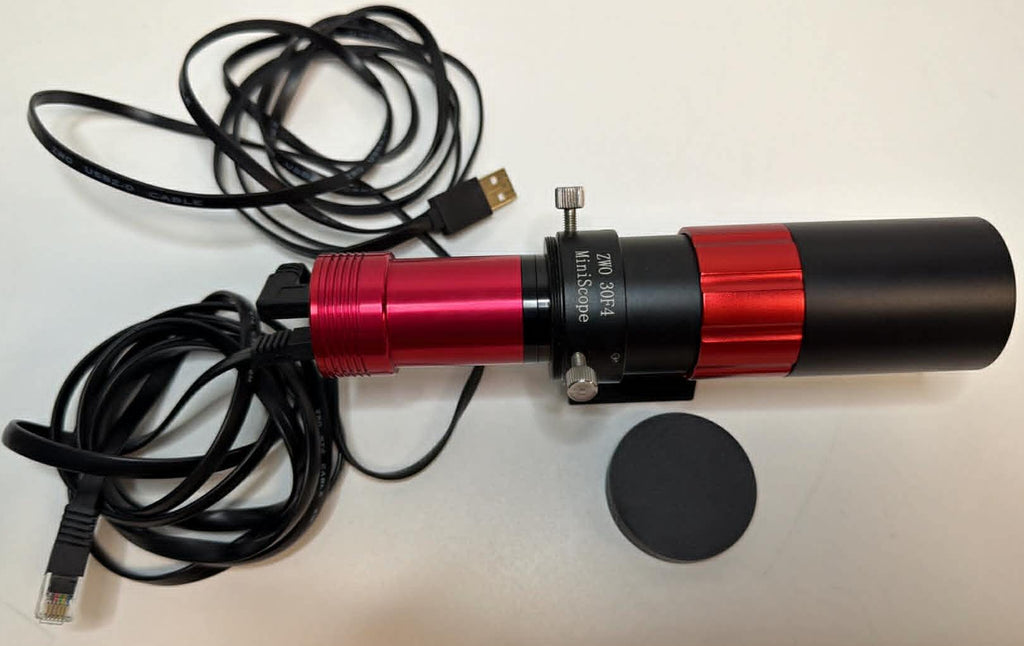

This is a used ZWO ASI120MM Mini guiding camera in excellent condition. This includes the ZWO 30F4 guidescope as well as the cables to connect this to your computer/mount, so this is a complete guiding system.
The sensor of the camera and the optics on the guidescope are absolutely clean, and the bodies of both are unmarked. This comes complete with the two cables shown in the photos, but no box.
The guide camera sells for $199 new; the guidescope sells for $99 new; so this is almost THREE HUNDRED DOLLARS worth of gear for just $175!
Please note that all used ZWO/ASI equipment comes with only the attachments/rings/cables that you see in the photos. If you don’t see it there, please know that it is NOT included. If you have specific questions about a part in the photos that you’re unsure of, please give us a call to discuss.
Description:
- A new model in the “mini”-series of cameras from ZWO.
- Great for newcomers to guiding!

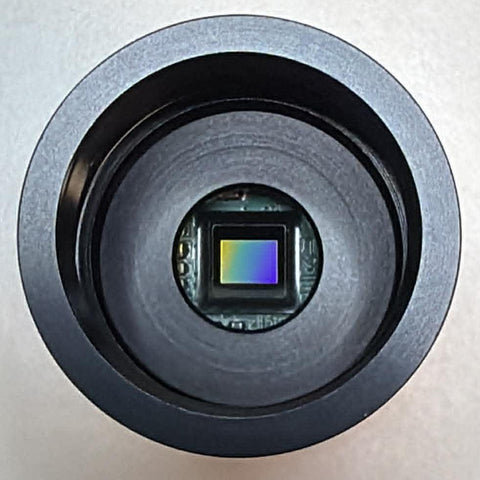

- Camera integrates the AR0130CS 1/3″ sensor (4.8 mm x 3.6 mm). This camera has 1280 x 960 pixels with a pixel size of 3.75 μm x 3.75 μm.
-
12-bit ADC and the QE peak is almost 80%.
Overview
The ASI 120MM Mini is a great first guide camera, with its high sensitivity, features, and low price. Like other cameras in ZWO's lineup of "Mini" models, it has a long barrel to allow easy positioning in a guidescope, like the nose of a regular eyepiece. This also allows a bit of extra adjustment for focus on your guidescope, as necessary.
Low read noise, high dynamic range, AR protective window and much more are just some of the key characteristics that provide good guiding performance and set it apart from the competition.

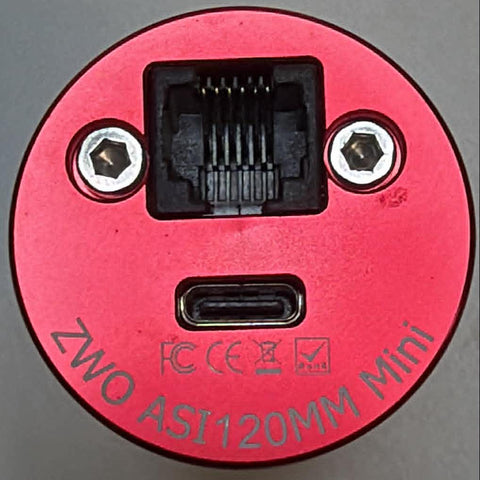

USB2.0 Port & ST4 Port
USB 2.0 Port: Mini camera has one USB2.0 type-C port. Type-C port is very popular in mobile phones, as it doesn’t matter which way you connect it (unlike for example type-A or type-B)
#USB-C to USB-A cable is required.
ST4 Port: The camera can be connected directly to the auto-guider port of the mount.
What's in the Box

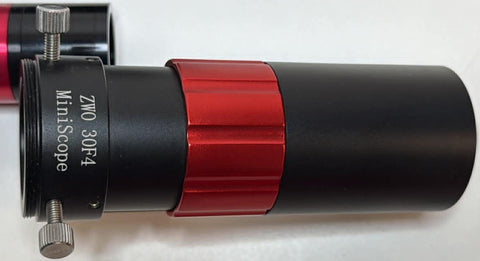

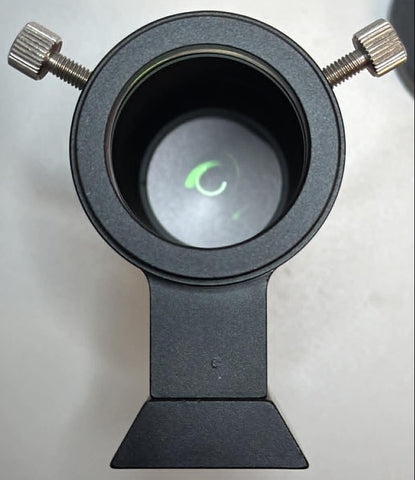

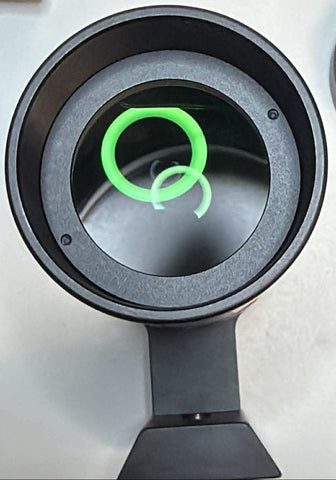

The ZWO Mini Guide Scope is a 30mm f/4 refractor guide scope in a small, easy to use package. It even comes ready to use with guider rings and dovetail for simple mounting. ZWO made sure this system was lightweight (1.1 lb.), allowing you to use it on most any scope or mount. Add an inexpensive brand-specific t-ring to the ZWO Mini Guidescope and attach it to your DSLR camera. It can be used as a finder with optional eyepiece (reticle or otherwise) as long as you view straight-through (no diagonal).
ZWO 30mm Mini Guide Scope Specifications
- Aperture: 30mm
- Focal Length: 120mm
- Focal Ratio: f/4
- Back Focus: Adjustable, 0 - 20mm
- Optics: Multi-coated, cemented lens
- Focus Travel: 20mm (0.79")
- Focuser: 1.25" front focuser with focus lock thumbscrews
- Rings: Single guider ring with a total of two alignment screws
- Dovetail: Sytna-Style; Includes one 1/4" screw hole for mounting
- Length of OTA: +/- 122.5mm (4.82")
- Total Weight: +/- 500g (1.1 lb.)
