iOptron

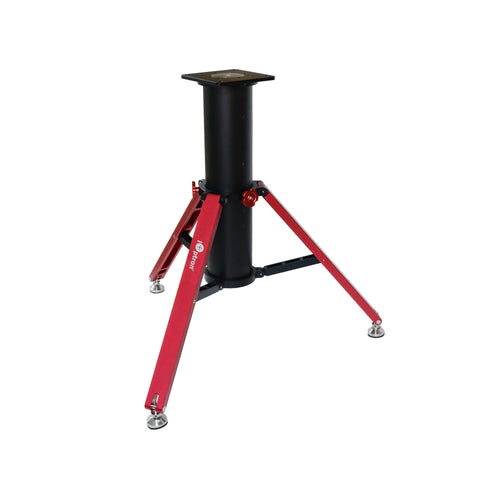

Tri-Pier 360

SKU: 8037A


  • Sale
  • Regular price $1,048.00

Free Ground Shipping Available (CONUS only)


Revised Tri-Pier 360 is now 11 lbs lighter with the same carry capacity! combines the strength and stableness of a pier with the leveling flexibility of a tripod (up to 2" uneven ground range). 5mm thick aluminum alloy pier and CNC machined legs with adjustable feet.

The Tri-Pier 360 fits the iOptron CEM120 mount.

The CEM70, CEM60, and iEQ45 mounts will fit when used with the Center Post adapter, sold separately.

Max Payload 360 lbs (165 kg)
Self Weight ~31 lbs (13.9 kg)
Material and Finish Aluminum Alloy (CNC), anodized
Pier Diameter 6" (150 mm)
Pier Wall Thickness 5 mm
Pier Top Plate 8 1/4"X 8 1/4"(210mm X 210mm)
Adjustable Height 860-1020 mm
Uneven Ground Range 2" (51 mm)
Leg Maximum Spread 1150 mm
Pier Dimension (folded) Ø240 x 820 mm
Warranty One year limited
Barcode: 6943831501046
