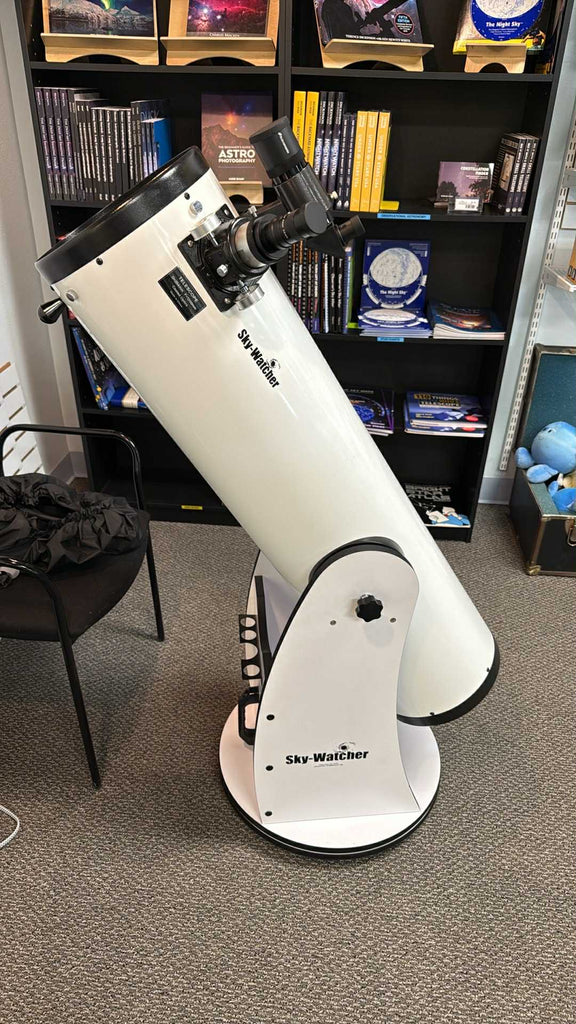

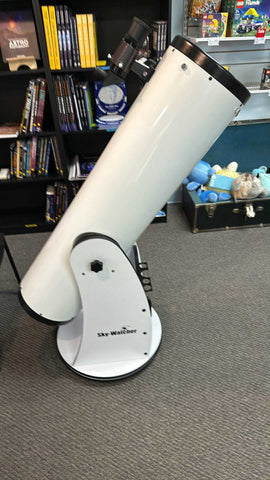

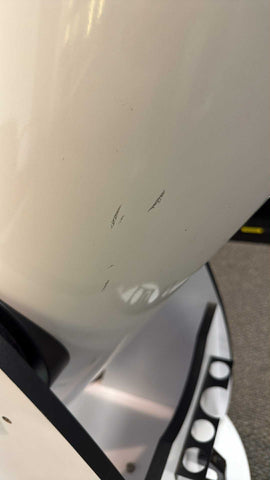

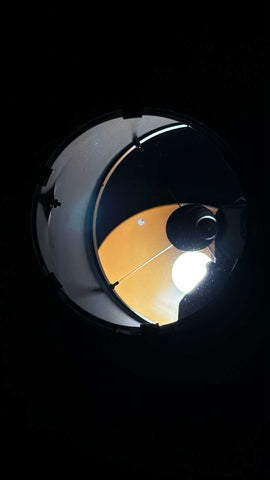

This is a 10" dob in very good shape. The optics are clean, with only a minimal amount of dust on the primary mirror, which will not affect your views. The body is in excellent shape, with a couple of small nicks on the tube (see the photos).
However, the dob does squeak loudly when moved in azimuth (left and right). It still moves smoothly without sticking, but the tension on the bolt probably needs to be adjusted. We have taken this minor condition issue into consideration in terms of the pricing.

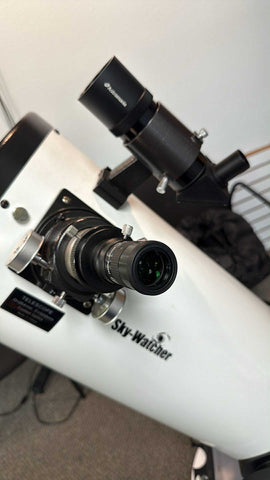

This is the stock model, with the standard 25mm Plossl and 2" to 1.25" adapter in the focus tube. On the other hand, the previous owner upgraded the finder to a 9x50 RACI finder.
This dob mount has already been built by its previous owner, and we don't have the shipping boxes for it, so this is for in-store pickup only. At almost half-off, this one won't last! There are no returns on this item.
- 10” (254 mm) Dobsonian-style Newtonian
- 1200 mm focal length (f/4.7)
- 2” single-speed Crayford-style focuser with 1.25” adaptor
- 25mm 1.25” Plossl eyepiece

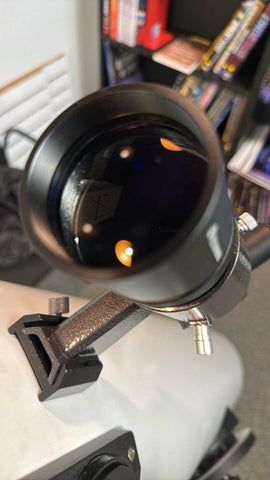

- 9×50 RACI finderscope
- Solid rocker-mount with Teflon bearings and tension clutch for altitude
- Teflon bearing for azimuth
Description

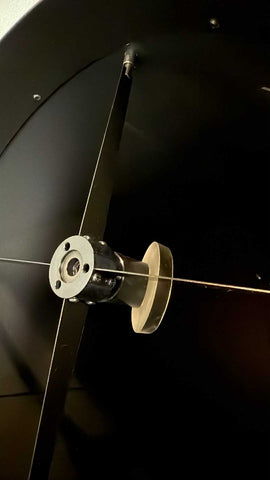

The Sky-Watcher Traditional Dobsonian Telescope 254mm/1200mm (10″) has a “paraboloidal” primary mirror to eliminate spherical aberration and a four-arm, secondary- mirror bracket with fine supports (0.5mm thick), to reduce diffraction spikes and light loss. In addition, this model include a 2″ focuser with a 1.25″ adapter, allowing the use of either eyepiece size. This model also include the new feature-tension control handle.
Specifications
| Optical Info | |
|---|---|
| Optical Design | Newtonian |
| Mirror Coatings | 94% Aluminum |
| Glass Type | Borosilicate |
| Primary Aperture (mm) | 254 |
| F/Ratio | 4.7 |
| Focal Length (mm) | 1200 |
| Secondary Diameter | 64mm |
| Secondary Obstruction (by diameter) | 25% |
| Secondary Obstruction by Area | 6% |
| Observational Info | |
| Dawes Limit | 0.46 |
| Rayleigh Limit | 0.55 |
| Limiting Mag. | 14.5 |
| Minimum Magnification | 36 |
| Maximum Magnification | 500 |
| Light Gathering (compared to next size down) | 57% |
| General Info | |
| Focuser | 2" Crayford |
| OTA Length (Retract/Ext.) | 45" |
| OTA Outer Diameter | 11.375" |
| OTA Weight (with accessories) | 28 |
| Dob Base Weight | 25 |
| Dob Base Measurements | 29"x20.5" |
| Zenith Eyepiece Height | 48" |
| Accessories | |
| Included Finder | 9x50 Finder |
| Included Diagonal | No |
| Included Eyepieces | 25/10 Super (modified Kellner) |
| Magnification w/ Included Eyepieces | 48x/120x |
| Included Case | No |
| Corrector | No |
