Sky-Watcher

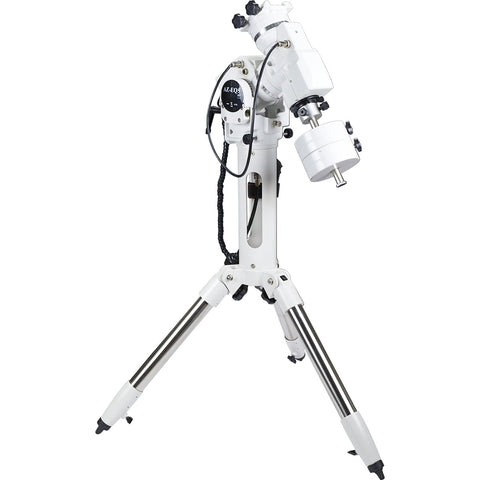

AZ-EQ5 Mount

SKU: S30200


  • Sale
  • $1,599.00
  • Regular price $1,900.00

Qualifies for Free Ground Economy Shipping (CONUS Only)


  • German Equatorial/Alt-Az/dual-OTA mode.
  • Permanent periodic error correction (PPEC).
  • Belt drive – Super smooth PE curve. Low backlash, silent slewing.
  • +/- 5 arc seconds native periodic error.
  • Dual shutter release control for batch exposures of astrophotography.
  • Motor controller with high torque and accuracy.
  • Includes two V-style saddles for mounting dual OTAs
  • Secure-fit power supply connections.
  • Polar alignment with optional polarscope.
  • Dual Encoders
  • Counterweight extension bar included.
  • Retractable counterweight bar.
  • Product includes Hand Controller

Specifications

Mount Type

Alt-AZ/EQ

GoTo

Yes

Object Database

42900+

Payload Capacity (lbs)

30lbs.

Polar Alignment Assist

Yes

Auto Guide

Yes

Permanent Periodic Correction

Yes

Pointing Accuracy (RMS)

5 arc minutes

DSLR Interface

Yes (Dual)

Motor Type

Stepper

Drive System

Belt

Dual Encoders

Yes

Polar Scope

Optional

Clutch

Slip

Mounting Saddle Type

V-Style

Power Type

12V

Mount Height (min)

41″

Mount Height (max)

48.7″

Tripod Leg Diameter

1.75″

Mount Head Weight (lbs)

16.9lbs.

Tripod Weight (lbs)

13.4lbs.

Fully Assembled Weight (with weights)

43.8lbs.

Other Included Items

7.5lbs counter weights (2), Counterweight extension bar, 2 v-style saddles for dual OTA mounting

    Barcode: 050234302005
