iOptron

SkyHunter Portable AZ GOTO Mount

SKU: SHAZ


  • Sale
  • Regular price $488.00

Yes, our inventory is accurate!

Qualifies for Free Ground Economy Shipping (CONUS Only)


Note: New in stock units have the revised control board to correct an issue with the initial release of this mount.

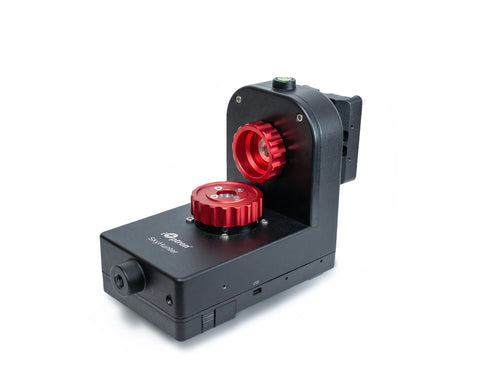

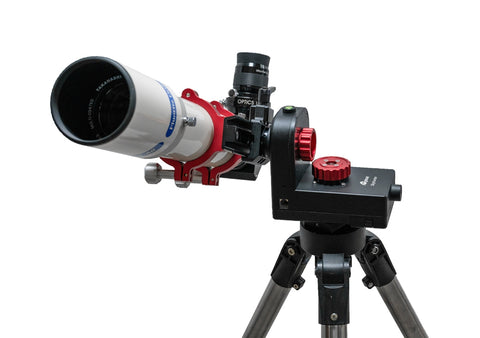

iOptron's new ultra compact AZ GoTo mount -- introducing The SkyHunterTM!

This mount is available in 3 separate configurations comprised of different accessories.

Fifteen years after releasing the innovational CubeTM AZ/EQ GoTo mount, the SkyHunterTM takes the next step toward perfection. It is the lightest and most compact full function portable goto mount in iOptron's exceptional history. Weighing in at only 2.9 lbs (including internal rechargeable battery), the SkyHunter TM is capable of supporting an 11 lbs payload in both equatorial and alt-azimuth modes.

The SkyHunterTM mount features four tracking rates, 1X or sidereal, 1/2X for sky and landscape combined, solar and lunar. All 4 tracking rates work in both northern and southern hemispheres.

The SkyHunterTM mount can be controlled by an iOS or Android SmartPhone/tablet, an optional 8410 hand controller, or a computer via ASCOM, INDI or embedded drive.

  • Specialized Grab N’ Go GOTO EQ/AZ mount
  • Mount weighs 2.9 lbs (1.3kg)
  • Payload 11 lbs (5kg) (balanced, exclude CW)
  • Dual-axis servomotors with optical encoders
  • Tracking speed: solar, lunar, 1X, 1/2X, S/N
  • Operation in both northern and southern hemisphere
  • Vixen dovetail saddle
  • Built-in rechargeable battery for up to 10 hours of operation (20°C)
  • Built-in WIFI adapter for full ASCOM, iOptron CommanderTM and Sky Safari control
  • USB port for firmware upgrade and computer control
  • Optional Go2Nova® 8410 controller with Advanced GOTONOVA® GOTO Technology
  • Counterweight Shaft: Φ20X200mm with 3/8” thread, stainless steel
  • Counterweight: 3 lbs (1.35kg)
  • Attaches to a camera tripod with 3/8” or 1/4” threads
  • 1.25" Stainless steel tripod (#3221)
  • Optional carbon fiber tripod

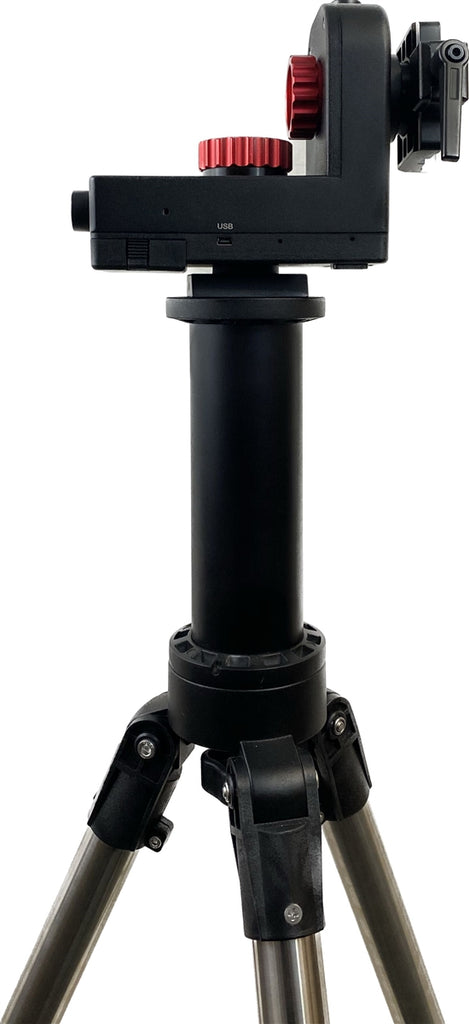

  • Pier-extension (#8041)
  • One year limited warranty on mount, 90 day for battery

    • SkyHunterTM GOTO EQ/AZ mount
    • Stainless steel counterweight shaft
    • 3 lbs counterweight
    • MiniUSB charging cable
    • #3221 Tripod
    • #8041 Pier extension
    • One Year Limited Warranty (90 day on battery)

      Mount Ultracompact GOTO EQ/AZ mount
      Payload (Max.) 11 lbs (5kg), balanced
      Mount weight 2.9 lbs (1.3kg) with battery
      Structure material Metal frame structure
      Motor drive Dual-axis DC servo motor with optical encoder
      Transmission Synchronous belt
      Tracking speed Solar, Lunar, Cel, 1/2 Cel, and N/S
      Maximum slew speed 4.5°/sec (1080X)
      Worm period 600 sec
      RA/DEC worm wheel Φ77 mm, 144 teeth
      Hand controller (Optional 8410 HC)
      Altitude adjustment range 0º ~ 80º
      Azimuth adjustment range ±5º
      Power Requirement Internal rechargeable battery
      Battery type Li-Poly, 3.7V, 2000mAh
      Duration of operation Up to 10 hours at 20ºC
      Counterweigh Shaft Φ20mmX200mm, 3/8" thread, stainless steel
      Counterweigh 3 lbs (1.3 kg)
      Dovetail saddle Vixen-type
      Body base connection Vixen dovetail, 3/8” socket
      Autoguiding ASCOM compatible
      Power charge port MiniUSB (5V)
      Wi-Fi Built-in
      Communication port Yes (Wi-Fi and USB)
      Firmware upgrade Yes (via USB port)
      Tripod 3221 Stainless Steel, optional carbon fiber tripod
      Pier extension Φ80x190 mm
      Operation Temperature -10ºC ~40ºC
      Warranty One year limited (90 day on battery)
